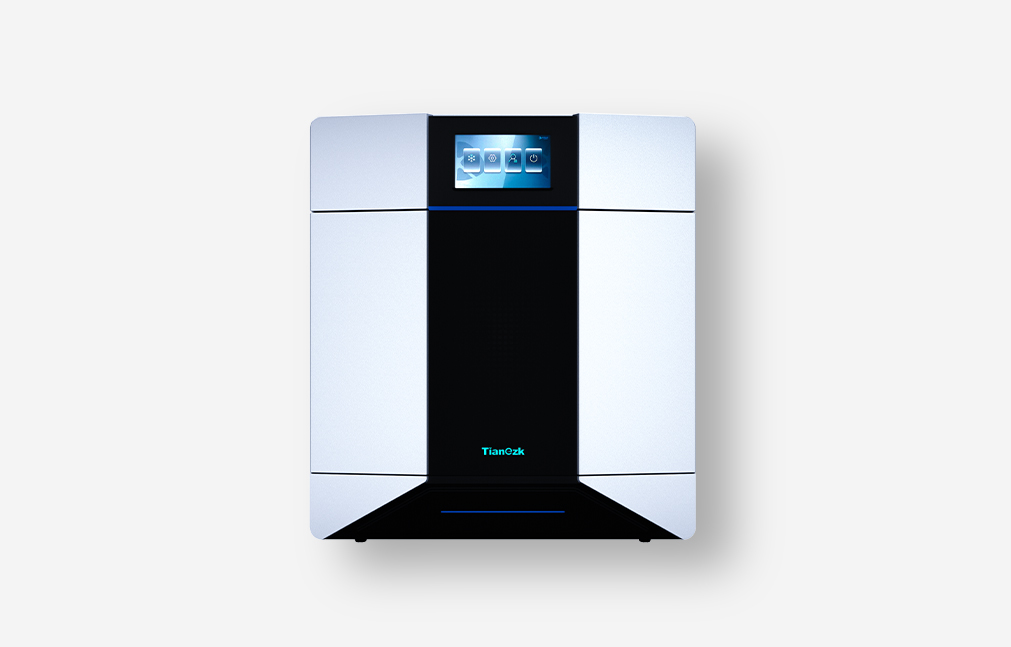

Microwave Digestion System

Product Name: Microwave Digestion System
Product Model: R Series
Batch Capacity: 24-44 positions available

01 Application Fields

Application Fields
It is suitable for sample digestion, synthesis, extraction, ashing, sintering, drying, and other treatments in various industries such as food, pharmaceuticals, quality inspection, industry, agriculture, disease control, chemicals, geology, metallurgy, materials, universities, and research institutes.

02 Convenient Protection

a: Temperature and Pressure Dual Control - a non-contact temperature and pressure control system that constantly monitors the reaction conditions of the sample tank, automatically alarms and stops working in case of abnormalities.

b: Industrial Furnace Chamber - Made of 316L stainless steel with one-piece molding and surface corrosion protection, resistant to acids, alkalis, and high pressures.

c: Furnace Door - Designed with a multi-layered steel structure and floating mechanism, providing strong impact resistance and preventing the furnace door from being opened during operation.

d: Pressure Relief Module - Features elastic buffered pressure relief and automatic pressure relief in case of overpressure.

03 Digestion Tank Assembly

a: Inner Digestion Tank - Made of TFM+PFA materials, resistant to high pressure, acids, and alkalis.

b: Outer Digestion Tank - Constructed with PEEK mixed with glass fiber or aerospace composite materials.

c: Design Consumables - No consumables required.

d: Pressure Relief Module - Features elastic buffered pressure relief and automatic pressure relief in case of overpressure.

e: Digestion Tank Capacity - Options available in 55, 70, 85, 100, and 110 ml.

04 Special Features

a: Digestion Tank Automatic Recognition System, capable of locating digestion tanks and counting their number.

b: Sound and Light Recognition System, which reflects the digestion status through sound or light changes.

c: Displays real-time temperature and pressure changes of any individual digestion tank through a bar chart.

d: Automatic Frequency Conversion Function, which matches the equivalent power value in real-time based on the number of digestion tanks and their temperatures.

e: Equipped with a solvent sensor that can actively stop the operation in case of overflow in the digestion tank.

f: Equipped with a noise sensor that can actively stop the operation and trigger an alarm in case of abnormal sounds or strong explosive noises.

g: Equipped with a flame sensor that can actively stop the operation and trigger an alarm in case of sparks or open flames inside the furnace chamber.

h: Three-level administrator mode, requiring verification for login.

i: Automatically saves digestion data, allows real-time viewing, and can generate electronic documents for export or printing.

j: Enables IoT functionality for remote connection and control, and can send E-mail notifications to terminals upon completion of instrument operation.

k: Multi-screen visual inspection, allowing real-time viewing of the interior through cameras, and can play instrument operation instructional videos.
