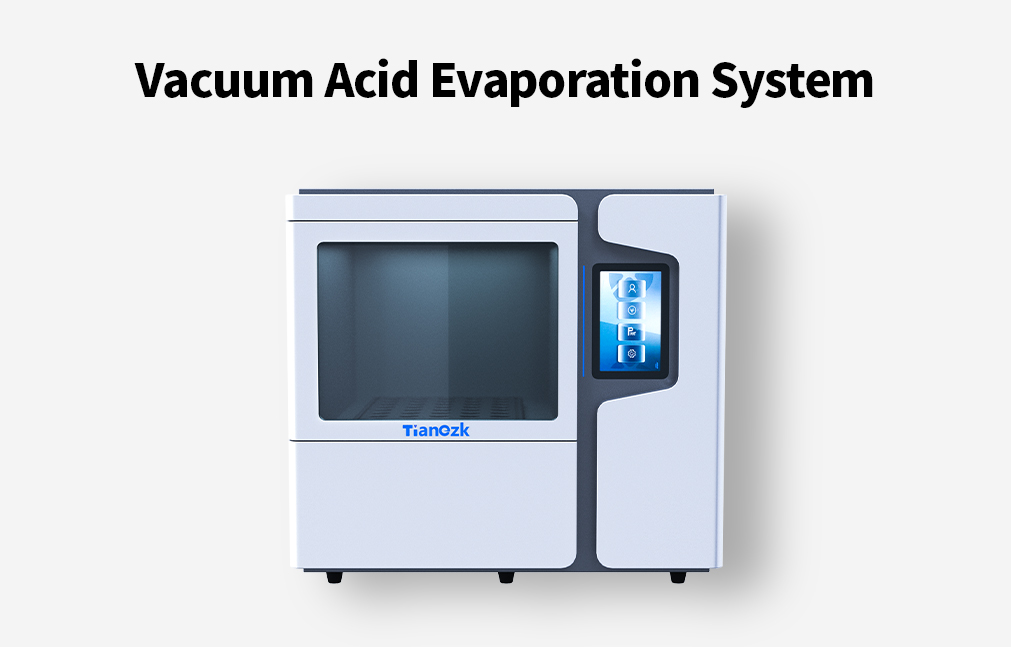

Vacuum Acid Evaporation System

Product Name: Vacuum Acid Evaporation System
Product Model: Auto-GS Series
Evaporation Holes: 24/30/40/45 holes available

01 Application Fields

Applied for acid removal after microwave digestion, often used in conjunction with microwave digestion systems.

02 Technical Parameters

a: Operating Voltage: A.C 220V ±10% 50Hz
b: Power: 2400W
c: Suitable Ambient Temperature: 10-40℃
d: Suitable Ambient Humidity: 20%-80%
e: Temperature Control Range: Room Temperature - 260℃
f: Temperature Difference Between Holes: ≤±1℃ @ 100℃
g: Number of Holes: Options available in 24, 30, 40, 45
h: Vacuum: ≥0.095Mpa
i: Gas Flow Rate: 30L/min

Functional Features

a: Graphite is used as the heating material, and the heating surface is coated with Teflon, which is resistant to acid and alkali corrosion.

b: Equipped with an alarm device for abnormal heating and overheating, which automatically alarms in case of over-temperature.

c: Vacuum filtration effectively reduces the acid removal time, and low-temperature acid removal is beneficial for the detection and recovery of volatile elements.

d: The integrated vacuum sealing cover eliminates the need for separate sealing, making the operation simple.

e: Equipped with four sets of acid gas neutralization devices with a capacity of ≥1000ml and one set of activated carbon adsorption device, effectively filtering acid gases to meet emission requirements, reducing harm to the air and personnel, and eliminating the need for a fume hood.

f: Temperature control adopts PID control technology, with a capacitive touch screen for color display and segmented gradient temperature control.

g: The vacuum control system utilizes microcomputer control technology, enabling real-time automatic control of vacuum levels and segmented gradient setting of vacuum degrees.

h: The gas paths are all made of PFA material, which is resistant to acid and alkali corrosion. The collection bottles are also made of PFA material to avoid the use of glass, which is not resistant to hydrofluoric acid corrosion.

i: The integrated vacuum sealing cover features an automatic lifting system, eliminating the need for manual handling and placement, making the operation simple and convenient.

j: Equipped with a volume-setting sensor, it can automatically stop the acid removal and concentration process when the volume reaches 1ml, eliminating the need for personnel to monitor the process.
