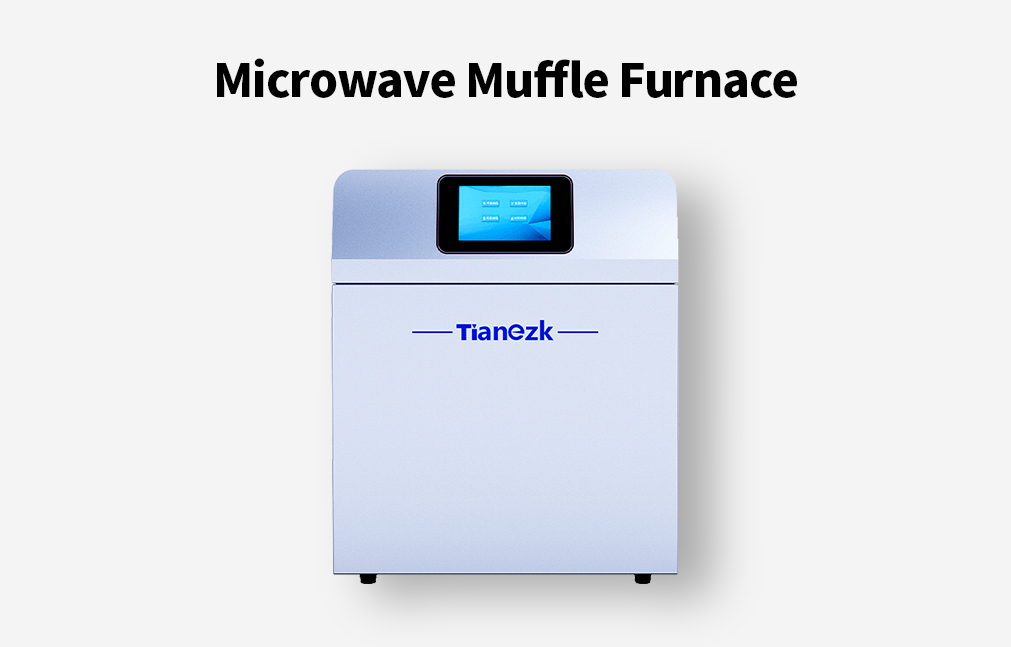

Microwave Muffle Furnace

Product Name: Microwave Muffle Furnace
Product Model: TP-3 Series
Chamber Volume: 3L, 5L, 7.2L available

01 Application Fields
It is suitable for sample ashing, sintering, and drying in industries such as food, pharmaceuticals, environmental protection, chemicals, geology, metallurgy, materials science, universities, and research institutions.

02 Technical Parameters

a: Microwave Frequency: 2450MHz, with non-pulsed continuous automatic frequency conversion control and automatically continuous adjustable power.

b: Temperature Control System: Utilizes a wireless penetrable infrared temperature sensor, with the option of using a wired platinum resistance temperature sensor.

c: Atmosphere System: Automatically controlled, capable of controlling the inlet and outlet of gas during experiments based on experimental requirements.

d: Atmosphere Protection: The gas protection device allows for atmosphere treatment with nitrogen, oxygen, inert gases, etc.

e: Built-in exhaust channel for separate exhaust of gases during reactions.

f: Direct coupling microwave excitation and wave-guide design.

g: Working Temperature: Room temperature - 1200℃.

h: Effective Furnace Chamber Size: Options of 3L, 5L, and 7.2L available.

03 Functional Features

a: The six-layer steel structure furnace door adopts a buffered floating design to ensure stability during the experiment.

b: The coordination of mechanical and electronic locks ensures that the furnace door cannot be opened during operation. In case of abnormal door opening, the instrument automatically cuts off the microwave and stops working.

c: The imported ceramic fiber furnace chamber provides excellent insulation without slagging, powder shedding, or sample contamination.

d: The circular wave-guide sealing structure with a reactive suppressor is employed to prevent microwave leakage.

e: Microcomputer control technology enables viewing of historical data and data import/export.

f: The capacitive LCD touch screen displays real-time information including temperature, heating time, holding time, microwave power, and reaction progress.
