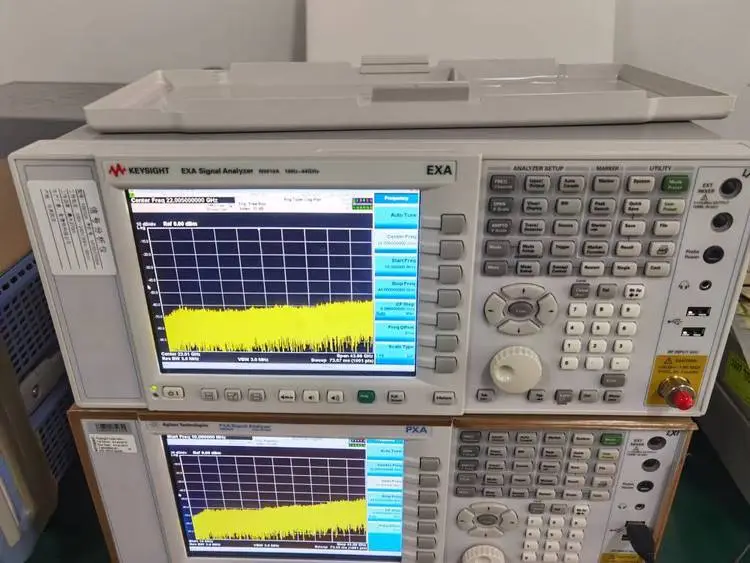

Repair Process of Agilent Spectrum Analyzer N9010A
Recently, we received an Agilent Spectrum Analyzer N9010A for repair, coinciding perfectly with our maintenance event—a stroke of luck! Below, I will share the detailed repair process for this spectrum analyzer.
Fault Description
During initial testing after powering on, we noticed a significant discrepancy between the input signal and output value. Additionally, during operation, the device displayed an error message during self-check: “RF Alignment Failure, ADC OVERLOAD.”
Inspection and Repair
After a thorough inspection, we discovered that both attenuators and the microwave switch were damaged, resulting in significant deviations in the high-frequency range. Accordingly, adjustments were necessary. Our repair measures included replacing the faulty attenuator and microwave switch components, followed by adjustments and testing of the entire system.
Repair Outcome
The final repair results were satisfactory. The self-check passed successfully, signal output returned to normal, and all self-test items showed normal results, indicating that the repair was successfully completed.
If you have similar spectrum analyzers in need of after-sales repair, please contact Lixun Maintenance. We are equipped to address various faults in spectrum analyzers, including but not limited to:
Power issues: such as inability to power on;
Input problems: like abnormal impedance, no signal, or unusual signal amplitude;
Testing and analysis faults: including frequency and phase testing anomalies;
Display issues: such as screen glitches or black screens;
Button malfunctions: like unresponsive buttons or knobs;
Interface failures: such as failure to recognize storage media or connect with control systems;
Other usage-related problems, etc.
We look forward to providing you with professional repair services.
